Modbus-(十三)-0x17 ReadWrite Multiple registers(读写多个寄存器)

Posted on By Freud Kang

模拟器Server设置

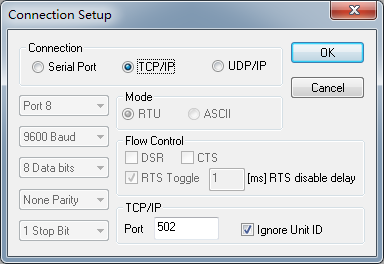

Connection -> Connect

connect-setup

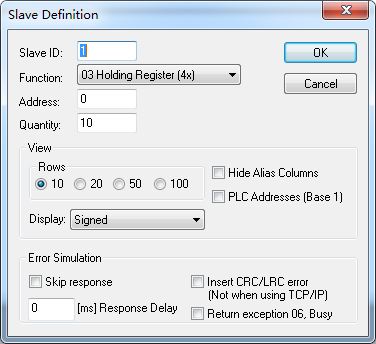

Setup -> Slave Definition

setup-definition

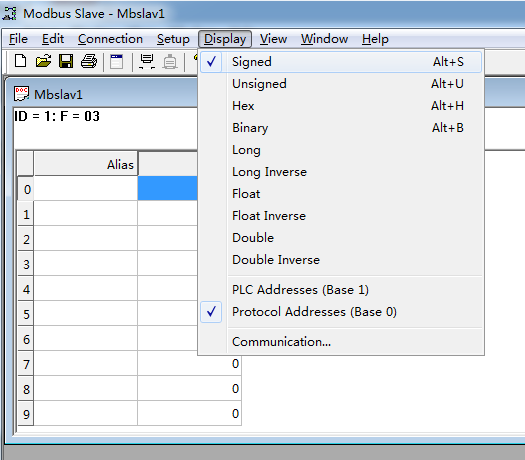

Display -> Signed

Display-Signed

代码实现

Test0X17.java

package com.freud;

import java.io.InputStream;
import java.io.OutputStream;
import java.net.Socket;

/**
 *
 * @author Freud Kang
 *
 */
public class Test0X17 {

	public static void main(String[] args) throws Exception {

		Socket socket = null;

		OutputStream os = null;
		InputStream is = null;

		try {
			socket = new Socket("localhost", 502);
			os = socket.getOutputStream();
			is = socket.getInputStream();
			String request = "00010000000F0117000000020002000204001E0028";
			System.out.println("Request  : " + request);
			os.write(hexStrToBytes(request));
			Thread.sleep(100);
			byte[] buffer = new byte[is.available()];
			is.read(buffer);
			String result = bytes2HexString(buffer);
			System.out.println("response : " + result);
		} finally {
			if (is != null) {
				is.close();
			}
			if (os != null) {
				os.flush();
				os.close();
			}
			if (socket != null) {
				socket.close();
			}
		}
	}

	public static byte[] hexStrToBytes(String hexStr) {
		if (hexStr.length() % 2 != 0) {
			throw new IllegalArgumentException("十六进制的字符串长度必须是2的倍数!");
		}
		byte[] ret = new byte[hexStr.length() / 2];
		for (int i = 0; i < hexStr.length(); i = i + 2) {
			ret[i / 2] = (byte) Integer.parseInt(hexStr.substring(i, i + 2), 16);
		}
		return ret;
	}

	public static String bytes2HexString(byte[] src) {
		StringBuilder stringBuilder = new StringBuilder();
		if (src == null || src.length <= 0) {
			return null;
		}
		for (int i = 0; i < src.length; i++) {
			int v = src[i] & 0xFF;
			String hv = Integer.toHexString(v).toUpperCase();
			if (hv.length() < 2) {
				stringBuilder.append(0);
			}
			stringBuilder.append(hv);
		}
		return stringBuilder.toString();
	}
}

/**
 * Request  : 00010000000F0117000000020002000204001E0028
 * response : 000100000007011704000A0014
 */

Request解析

发送字节数组解析为16进制为00010000000F0117000000020002000204001E0028

传输标志(2) 协议标志(2) 长度(2) 单元标志(1) 功能码(1) 读开始地址(2) 读寄存器个数(2) 写开始地址(2) 写寄存器个数(2) 写字节个数(1) 写寄存器值(4)
0001 0000 000F 01 17 0000 0002 0002 0002 04 00 1E 00 28

其中写寄存器值001E0028转换为十进制为30 40

Response解析

返回字节数组解析为16进制为000100000007011704000A0014

传输标志(2) 协议标志(2) 长度(2) 单元标志(1) 功能码(1) 字节个数(1) 读取寄存器值(4)
0001 0000 0007 01 17 04 00 0A 00 14

其中读取寄存器值000A0014转换为十进制为10 20

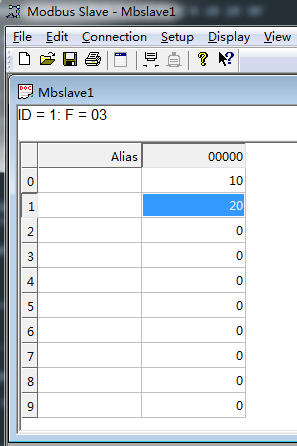

模拟器Server控制前

Request

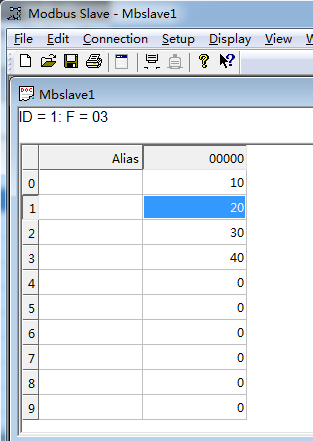

模拟器Server控制结果

Request

官方文档

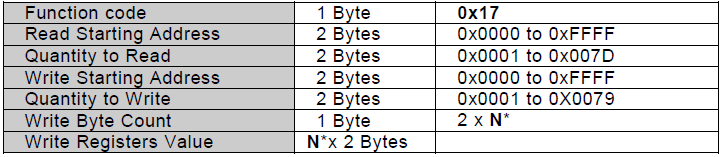

Request

Request

*N = Quantity to Write

Response

Response

*N’ = Quantity to Read

Error

Error

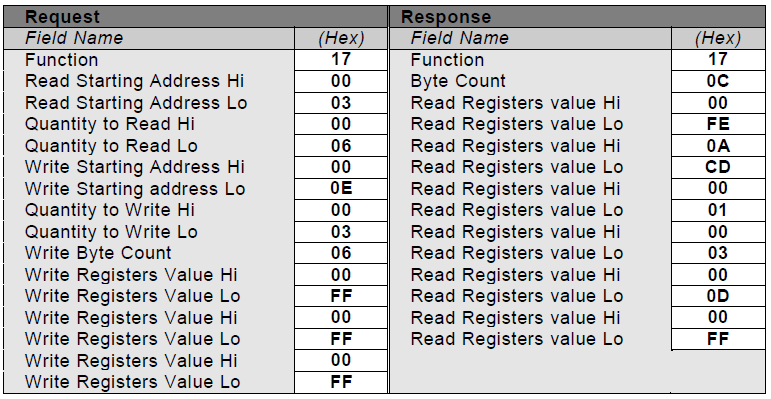

Example

Example

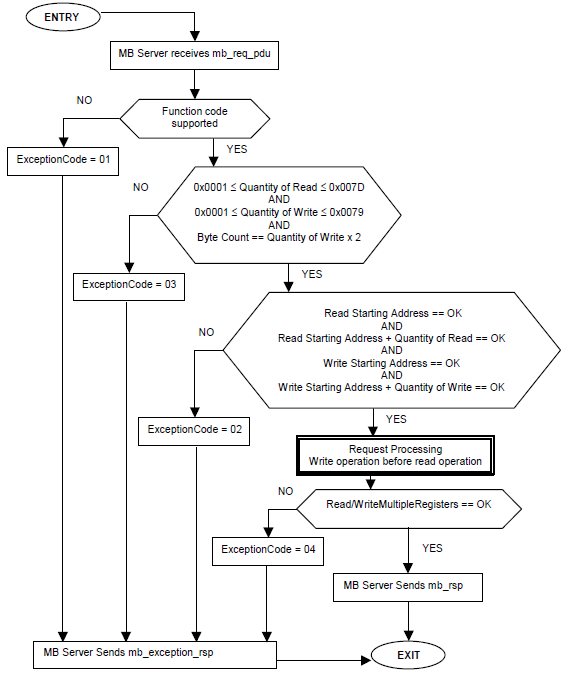

State Diagram

State Diagram



参考资料

Modbus官方文档:《Modbus_Application_Protocol_V1_1b3》

Modbus RTU和ASCII 协议解析 : http://www.modbustools.com/modbus.html
