Spring 使用笔记之(五) - Spring-ws实现基于契约优先的WebService

Posted on By Freud Kang

以前写过基于JAXB的传统Java WebService服务端,通过IBM WebSphere Message Broker生成过WebService服务端,最近项目要在Spring MVC搭建的Web项目中添加WebService服务。研究之后发现主流的实现无外乎Apache CXF,Axis 2,Spring WebService。通过对比发现,CXF需要引入的jar依赖太多,Axis 2太重量级,最后选择Spring WebService,主要原因是原有的Web项目是基于Spring MVC的,Spring WebSercice可以与之无缝整合,Spring WebService完全可以支撑现有的业务,并且相对比较轻量级。

基于Spring MVC的web项目上可以通过Spring WebService添加Webservice的服务端实现。

Maven依赖

需要的jar包可以通过Maven导入

<dependency>
	<groupId>org.springframework.ws</groupId>
	<artifactId>spring-ws-core</artifactId>
	<version>2.2.0.RELEASE</version>
</dependency>
<dependency>
	<groupId>jaxen</groupId>
	<artifactId>jaxen</artifactId>
	<version>1.1</version>
</dependency>
<dependency>
	<groupId>wsdl4j</groupId>
	<artifactId>wsdl4j</artifactId>
	<version>1.6.3</version>
</dependency>

demo.xsd

因为在我们的WebService服务端当中引入了JAXB2,所以整个服务端Endpoint类编写变的简单,同时Spring-WS2.0支持 将XSD文档自动转换成WSDL,这样我们就不用直接编写复杂的WSDL,而只需要编写好XSD文档即可实现WSDL发布。一般来说,一个 WebService的编写是从定义WSDL开始的,对于我们这里来说,因为我们可以将XSD自动转换成WSDL,所以我们就是从编写简单的XSD开始。

Spring WebService基于约定优于配置的原则,规定所有的入参在定义XSD时要以Request结尾(Request),比如我们这里的UserRequest;所有的出站参数要以Response结尾(Response),比如我们这里的UserResponse。前面的相同***部分标识为同一个Operation,了解这些之后就可以定义们的XSD文档,具体内容如下:

<?xml version="1.0" encoding="UTF-8"?>
<schema targetNamespace="http://www.hifreud.com/ws/demo"
	elementFormDefault="qualified" xmlns="http://www.w3.org/2001/XMLSchema"
	xmlns:tns="http://www.hifreud.com/ws/demo">

	<element name="UserResponse">
		<complexType>
			<sequence>
				<element name="username" type="string" maxOccurs="1" minOccurs="1" />
				<element name="gender" type="string" maxOccurs="1" minOccurs="1" />
				<element name="birthday" type="date" maxOccurs="1" minOccurs="1" />
				<element name="location" type="string" maxOccurs="1" minOccurs="1" />
			</sequence>
		</complexType>
	</element>

	<element name="UserRequest">
		<complexType>
			<sequence>
				<element name="userId" type="string" minOccurs="1" maxOccurs="1"/>
			</sequence>
		</complexType>
	</element>
</schema>

以上定义了一个User的Operation,如参为UserRequest,出参为UserResponse.

Web.xml添加

<servlet>
	<servlet-name>spring-ws</servlet-name>
	<servlet-class>org.springframework.ws.transport.http.MessageDispatcherServlet</servlet-class>
</servlet>
<servlet-mapping>
	<servlet-name>spring-ws</servlet-name>
	<url-pattern>/webservice/*</url-pattern>
</servlet-mapping>

spring-ws-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:sws="http://www.springframework.org/schema/web-services"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="
	http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
	http://www.springframework.org/schema/web-services http://www.springframework.org/schema/web-services/web-services-2.0.xsd">
 	<!-- 自动扫描@Endpoint注解 -->
 	<context:component-scan base-package="com.freud.endpoint" />
	<!-- 开启Spring WebService的注解自动扫描驱动 -->
	<sws:annotation-driven/>
	<!-- 动态WSDL的配置 -->
	<sws:dynamic-wsdl id="demo" portTypeName="UserOperation" locationUri="/webservice/demo"
					  targetNamespace="http://www.hifreud.com/ws/demo">
		<sws:xsd location="classpath:demo.xsd" />
	</sws:dynamic-wsdl>

</beans>

定义UserRequest和UserResponse的实体类

package com.freud.endpoint.bean;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement(namespace = "http://www.hifreud.com/ws/demo", name = "UserRequest")
@XmlAccessorType(XmlAccessType.FIELD)
public class UserRequest
{
    @XmlElement(namespace = "http://www.hifreud.com/ws/demo")
    private String userId;

    public String getUserId()
    {
        return userId;
    }

    public void setUserId(String userId)
    {
        this.userId = userId;
    }

}


package com.freud.endpoint.bean;
import java.util.Date;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement(namespace = "http://www.hifreud.com/ws/demo", name="UserResponse")
@XmlAccessorType(XmlAccessType.FIELD)
public class UserResponse
{
    @XmlElement(namespace = "http://www.hifreud.com/ws/demo")
    private String username;

    @XmlElement(namespace = "http://www.hifreud.com/ws/demo")
    private String gender;

    @XmlElement(namespace = "http://www.hifreud.com/ws/demo")
    private Date birthday;

    @XmlElement(namespace = "http://www.hifreud.com/ws/demo")
    private String location;

    public String getUsername()
    {
        return username;
    }

    public void setUsername(String username)
    {
        this.username = username;
    }

    public String getGender()
    {
        return gender;
    }

    public void setGender(String gender)
    {
        this.gender = gender;
    }

    public Date getBirthday()
    {
        return birthday;
    }

    public void setBirthday(Date birthday)
    {
        this.birthday = birthday;
    }

    public String getLocation()
    {
        return location;
    }

    public void setLocation(String location)
    {
        this.location = location;
    }

}

这两个类非常普通的POJO对象,它们都用到了@XmlRootElement、@XmlAccessorType,这两个annotation由JAXB2提供

UserEndpoint

package com.freud.endpoint;

import java.util.Date;

import org.springframework.ws.server.endpoint.annotation.Endpoint;
import org.springframework.ws.server.endpoint.annotation.PayloadRoot;
import org.springframework.ws.server.endpoint.annotation.RequestPayload;
import org.springframework.ws.server.endpoint.annotation.ResponsePayload;

import com.freud.endpoint.bean.UserRequest;
import com.freud.endpoint.bean.UserResponse;

@Endpoint
public class UserEndpoint
{
    @PayloadRoot(namespace = "http://www.hifreud.com/ws/demo", localPart = "UserRequest")
    @ResponsePayload
    public UserResponse findUserById(@RequestPayload
    UserRequest request)
        throws Exception
    {

        System.out.println(request.getUserId());

        UserResponse response = new UserResponse();
        response.setUsername("Freud");
        response.setGender("Male");
        response.setLocation("Dalian");
        response.setBirthday(new Date());

        return response;
    }
}

可以看到,以上的类中采用了四个annotation,在类上的@Endpoint标明将这个类发布成一个Endpoint服务 类,findUserById方法上有两个annotation:@PayloadRoot用于标明findUserById可以授受的XML信息,这里取的是XML的 namespace为http://www.hifreud.com/ws/demo, 同时XML的ROOT为UserRequest的信息;下面的@ResponsePayload标明findUserById方法有返回值,返回值需要回写给 Webservice调用客户端;参数中还有一个@RequestPayload的annotation,它表示从请求负载中取值作为参数,我们这里因为 采用了JAXB2,所以可以将负载的XML消息直接转换成一个名为UserRequest的Java对象。

启动服务。将URL定位到http://localhost:8080/sws/webservice/demo.wsdl?wsdl

获得WSDL的详细信息如下

<?xml version="1.0" encoding="UTF-8" standalone="no"?><wsdl:definitions xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:sch="http://www.hifreud.com/ws/demo" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:tns="http://www.hifreud.com/ws/demo" targetNamespace="http://www.hifreud.com/ws/demo">
  <wsdl:types>
    <schema xmlns="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified" targetNamespace="http://www.hifreud.com/ws/demo">

	<element name="UserResponse">
		<complexType>
			<sequence>
				<element maxOccurs="1" minOccurs="1" name="username" type="string"/>
				<element maxOccurs="1" minOccurs="1" name="gender" type="string"/>
				<element maxOccurs="1" minOccurs="1" name="birthday" type="date"/>
				<element maxOccurs="1" minOccurs="1" name="location" type="string"/>
			</sequence>
		</complexType>
	</element>

	<element name="UserRequest">
		<complexType>
			<sequence>
				<element maxOccurs="1" minOccurs="1" name="userId" type="string"/>
			</sequence>
		</complexType>
	</element>
</schema>
  </wsdl:types>
  <wsdl:message name="UserResponse">
    <wsdl:part element="tns:UserResponse" name="UserResponse">
    </wsdl:part>
  </wsdl:message>
  <wsdl:message name="UserRequest">
    <wsdl:part element="tns:UserRequest" name="UserRequest">
    </wsdl:part>
  </wsdl:message>
  <wsdl:portType name="UserOperation">
    <wsdl:operation name="User">
      <wsdl:input message="tns:UserRequest" name="UserRequest">
    </wsdl:input>
      <wsdl:output message="tns:UserResponse" name="UserResponse">
    </wsdl:output>
    </wsdl:operation>
  </wsdl:portType>
  <wsdl:binding name="UserOperationSoap11" type="tns:UserOperation">
    <soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>
    <wsdl:operation name="User">
      <soap:operation soapAction=""/>
      <wsdl:input name="UserRequest">
        <soap:body use="literal"/>
      </wsdl:input>
      <wsdl:output name="UserResponse">
        <soap:body use="literal"/>
      </wsdl:output>
    </wsdl:operation>
  </wsdl:binding>
  <wsdl:service name="UserOperationService">
    <wsdl:port binding="tns:UserOperationSoap11" name="UserOperationSoap11">
      <soap:address location="/webservice/demo"/>
    </wsdl:port>
  </wsdl:service>
</wsdl:definitions>

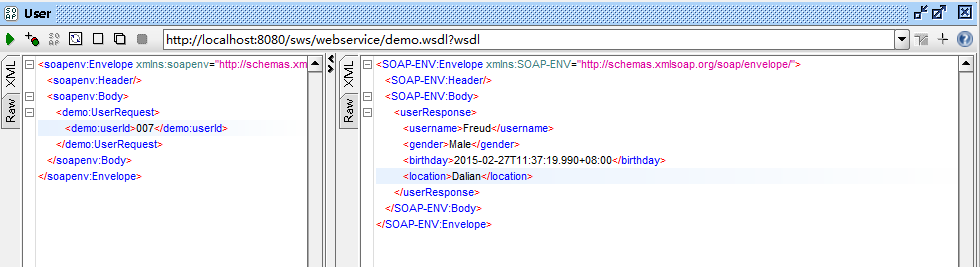

使用SOAP-UI测试结果

测试结果
