微服务--使用Nexus Repository Manager 3.0搭建私有Docker仓库

Posted on By Freud Kang

下载

下载最新的Nexus Repository Manager 3.0, https://help.sonatype.com/repomanager3/download。并解压在某个目录,Windows下,官方不建议解压在“Program Files”或者“Program Files (x86)”目录,原因是空格和特殊字符。个人习惯是在c盘下创建一个”programs”的目录,专门安装这种解压即可用的软件。

启动

linux下执行

./nexus run

windows下执行

nexus.exe /run

启动成功会打印如下信息

2018-06-05 10:56:15,582+0800 INFO  [jetty-main-1] *SYSTEM org.eclipse.jetty.server.AbstractConnector - Started ServerConnector@289fb2e9{HTTP/1.1,[http/1.1]}{0.0.0.0:8081}
2018-06-05 10:56:15,582+0800 INFO  [jetty-main-1] *SYSTEM org.eclipse.jetty.server.Server - Started @26802ms
2018-06-05 10:56:15,584+0800 INFO  [jetty-main-1] *SYSTEM org.sonatype.nexus.bootstrap.jetty.JettyServer -
-------------------------------------------------
Started Sonatype Nexus OSS 3.12.0-01
-------------------------------------------------

登录

Nexus启动之后默认监听8081端口,访问http://localhost:8081

/images/blog/micro-service/02-nexus-repository/01-visit.png

然后在右上角点击Sign in,使用默认admin/admin123用户名和密码登录,多了一个管理的标签,代表登录成功了。

/images/blog/micro-service/02-nexus-repository/02-login.png

创建Docker仓库

在Nexus中Docker仓库被分为了三种

+ hosted: 托管仓库 ,私有仓库,可以push和pull
+ proxy: 代理和缓存远程仓库 ,只能pull
+ group: 将多个proxy和hosted仓库添加到一个组,只访问一个组地址即可,只能pull

创建hosted repository

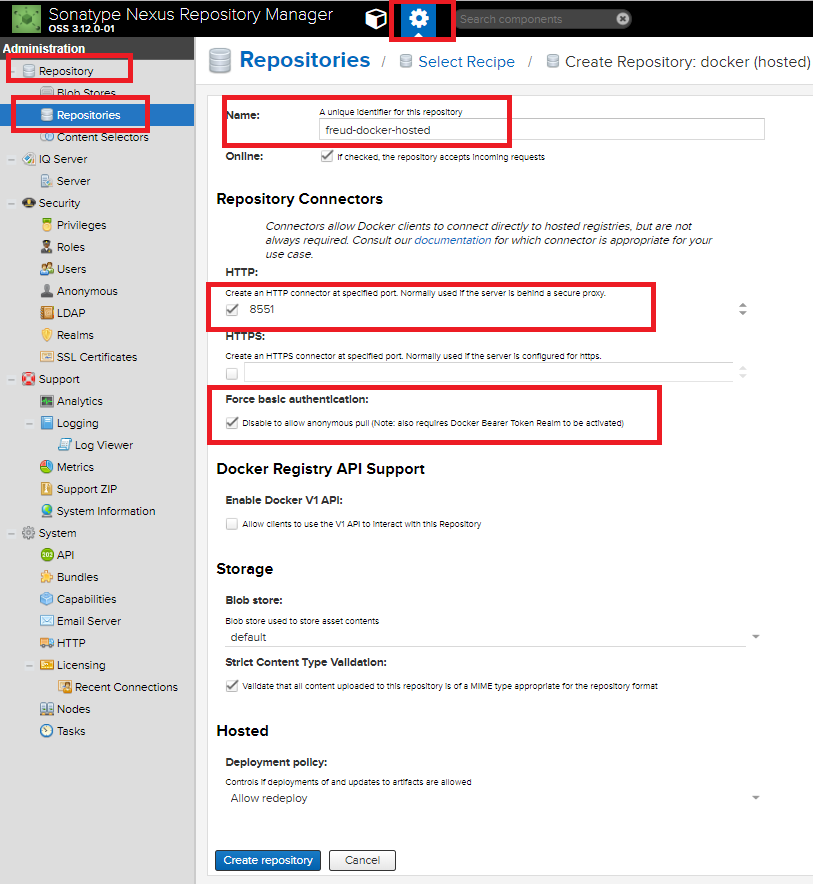

依次点击管理BUTTON -》 Repository -》 Repositories -》 Create Repository -》 Docker(hosted), 然后在弹出的页面中填写如下信息。

/images/blog/micro-service/02-nexus-repository/03-create-docker-hosted.png

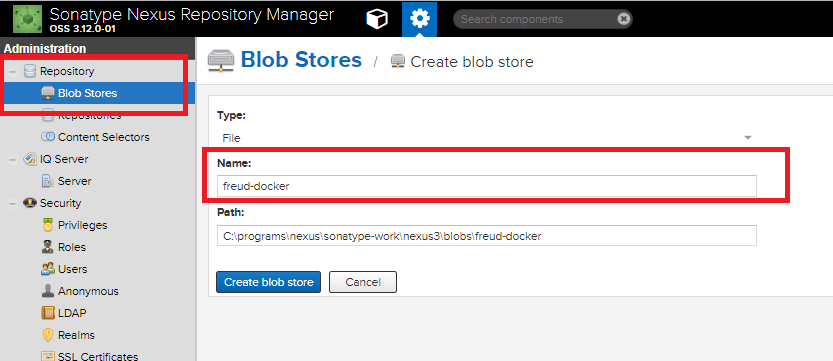

其中选择Blob Store的时候是指想将相关内容存储在什么位置,如果不想存储在default中,可以先退出然后点击左侧Blob Stores -》 Create Blob Store先创建一个存储位置

/images/blog/micro-service/02-nexus-repository/04-create-blob-stores.png

创建proxy repository

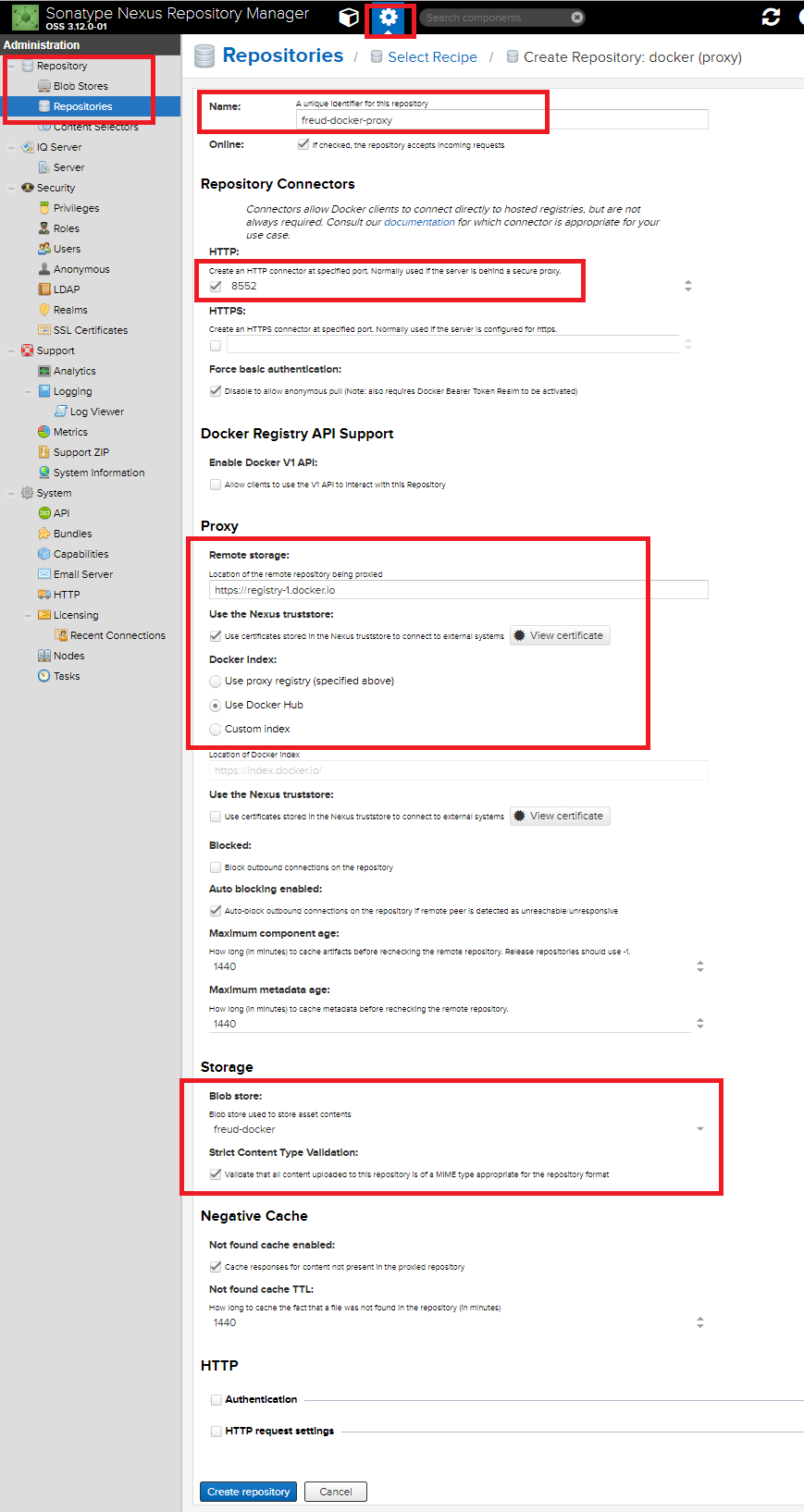

依次点击管理BUTTON -》 Repository -》 Repositories -》 Create Repository -》 Docker(proxy), 然后在弹出的页面中填写如下信息。

/images/blog/micro-service/02-nexus-repository/05-create-docker-proxy.png

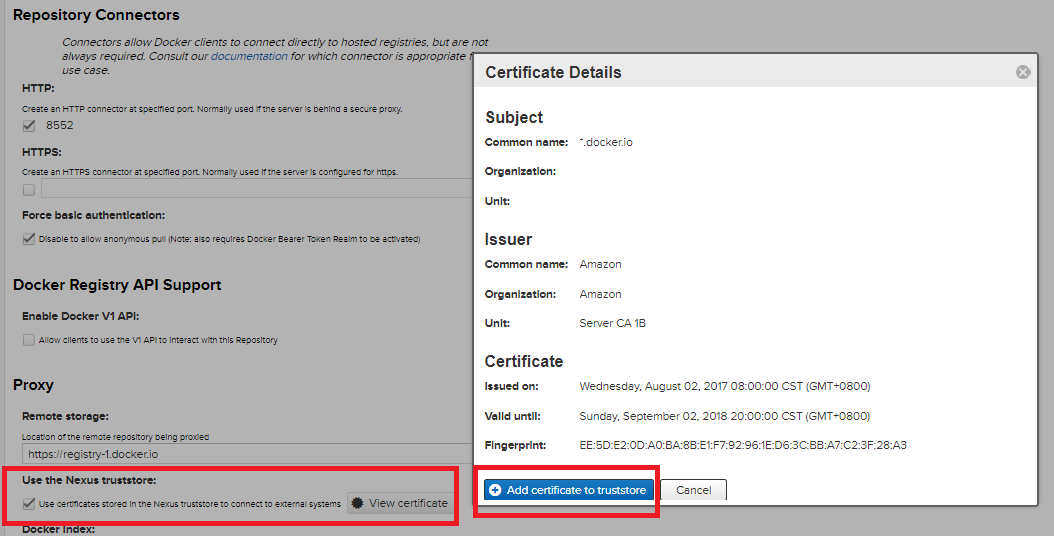

其中需要注意的是,在添加Proxy的Remote Storage的时候,需要选中Use certificates Stored in the Nexus truststore to connect to external systems, 然后点击View Certificate, 点击 Add certificate to truststore

/images/blog/micro-service/02-nexus-repository/06-add-trust-store.png

创建group repository

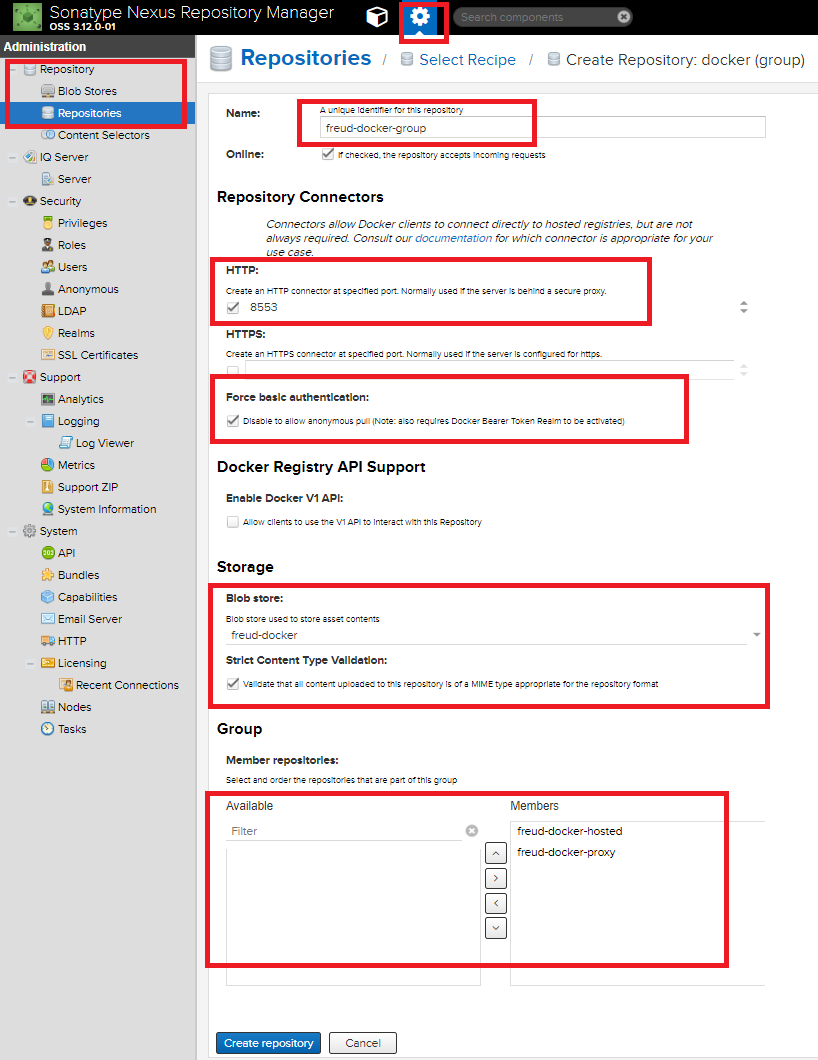

依次点击管理BUTTON -》 Repository -》 Repositories -》 Create Repository -》 Docker(group), 然后在弹出的页面中填写如下信息。

/images/blog/micro-service/02-nexus-repository/07-create-docker-group.png

Repository完工

至此,Nexus Docker Repository 部分配置完成了

Docker配置

由于本地Window下的Docker有问题,所以我选择的虚拟机下安装Linux来执行Docker,具体的Docker安装过程略过,本部分只涉及如何配置Docker从私服Pull和Push镜像。

配置daemon.json

其中192.168.59.1指安装Nexus的服务器地址

#vi /etc/docker/daemon.json
{
  "insecure-registries": [
    "192.168.59.1:8551",
    "192.168.59.1:8552",
    "192.168.59.1:8553"
  ],
  "disable-legacy-registry": true
}

重启Docker

#重启Docker服务
[root@localhost ~]# service docker restart
Redirecting to /bin/systemctl restart docker.service
#查看Docker服务运行状态
[root@localhost ~]# service docker status
Redirecting to /bin/systemctl status docker.service
● docker.service - Docker Application Container Engine
   Loaded: loaded (/usr/lib/systemd/system/docker.service; disabled; vendor preset: disabled)
   Active: active (running) since Mon 2018-06-04 13:00:17 EDT; 5s ago

创建镜像

[root@localhost docker]# mkdir docker
[root@localhost docker]# cd docker/
[root@localhost docker]# touch Dockerfile

[root@localhost docker]# vi Dockerfile
FROM debian
MAINTAINER Freud <luoyan35714@126.com>

CMD ["echo", "hello, this is freud!"]

[root@localhost docker]# docker build -t="hifreud" .
Sending build context to Docker daemon 2.048 kB
Step 1/3 : FROM debian
 ---> 8626492fecd3
Step 2/3 : MAINTAINER Freud <luoyan35714@126.com>
 ---> Running in 2695b8243d64
 ---> de27ed62ef24
Removing intermediate container 2695b8243d64
Step 3/3 : CMD echo hello, this is freud!
 ---> Running in ac5f9b2d1d01
 ---> 2e8231b2ab8d
Removing intermediate container ac5f9b2d1d01
Successfully built 2e8231b2ab8d
[root@localhost docker]# docker run hifreud
hello, this is freud!

Push镜像

[root@localhost docker]# docker tag hifreud 192.168.59.1:8551/freud:latest
#登录
[root@localhost docker]# docker login -u admin -p admin123 192.168.59.1:8551
Login Succeeded
#Docker login成功后会在本地的config.json文件写入相应的认证信息
[root@ip-192-168-75-128 .docker]# cat ~/.docker/config.json
{
  "auths": {
    "192.168.59.1:8551": {
      "auth": "YWRtaW46YWRtaW4xMjM="
    }
  }
}
[root@localhost docker]# docker push 192.168.59.1:8551/freud:latest
The push refers to a repository [192.168.59.1:8551/freud]
0f3a12fef684: Pushed
latest: digest: sha256:f1a08c9b6066ecee674a56ea1effeb115dc0c31a4a741632730aa6d69abf7705 size: 529

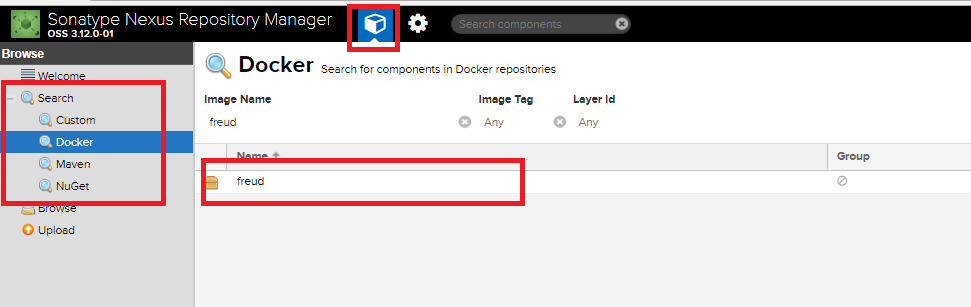

登录nexus查看上传的镜像

/images/blog/micro-service/02-nexus-repository/08-check-images.png

Pull镜像

[root@localhost ~]# docker images
REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE
192.168.59.1:8551/freud         latest              2e8231b2ab8d        About an hour ago   101 MB
hifreud                         latest              2e8231b2ab8d        About an hour ago   101 MB
[root@localhost ~]# docker rmi -f 192.168.59.1:8551/freud
Untagged: 192.168.59.1:8551/freud:latest
Deleted: sha256:2e8231b2ab8d72cb506328635593c0303e72ce51f3e5806a63c41a41ead552de
Deleted: sha256:de27ed62ef247b09066669c0ed71113069544957b8e83eb105495398cb1d22ac
[root@localhost ~]# docker images
REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE
hifreud                         latest              2e8231b2ab8d        About an hour ago   101 MB
[root@localhost ~]# docker pull 192.168.59.1:8551/freud
Using default tag: latest
Trying to pull repository 192.168.59.1:8551/freud ...
latest: Pulling from 192.168.59.1:8551/freud
cc1a78bfd46b: Already exists
Digest: sha256:f1a08c9b6066ecee674a56ea1effeb115dc0c31a4a741632730aa6d69abf7705
Status: Downloaded newer image for 192.168.59.1:8551/freud:latest
[root@localhost ~]# docker images
REPOSITORY                      TAG                 IMAGE ID            CREATED             SIZE
192.168.59.1:8551/freud         latest              2e8231b2ab8d        2 hours ago         101 MB
hifreud                         latest              2e8231b2ab8d        About an hour ago   101 MB

搜索镜像

由于在创建docker repository的时候,在Enable Docker V1 API的时候,并没有选中Allow clients to use the V1 API to interact with this Repository , 所以通过docker search直接检索private的repository或者images会报错,如下。

[root@localhost ~]# docker search 192.168.59.1:8553/freud
Error response from daemon: Unexpected status code 404

解决办法有两个,一个是在nexus上修改repository配置,设置Enable Docker V1 API是选中状态,另一种是通过V2的API来访问

#由于我们创建了Group Repository,所以此处IP可以是`192.168.59.1:8551`,也可以是`192.168.59.1:8553`
[root@localhost ~]# curl http://192.168.59.1:8551/v2/_catalog
{"repositories":["freud"]}
[root@localhost ~]# curl http://192.168.59.1:8553/v2/freud/tags/list
{"name":"freud","tags":["latest"]}
